TECH TUESDAY: How productive were being Ferrari’s Russian GP updates?

Ferrari brought a raft of upgrades for their troublesome SF1000 auto to the Russian Grand Prix, but did they operate as the workforce hoped? Mark Hughes will take a near seem, with technological illustrations from Giorgio Piola.

Charles Leclerc’s sixth position in Sochi represented a massive improvement in Ferrari’s kind more than the prior race in Mugello, wherever the Monegasque driver struggled to ninth throughout the line, which turned eighth just after a penalty for Kimi Raikkonen ahead of him.

View: Say What? Hamilton and Ricciardo star in the best of group radio from Sochi

The final result in Sochi coincided with some compact improvements to the specification of the Ferrari SF1000, but there is almost certainly significantly less to that correlation than meets the eye. The changes were comparatively tiny and element of a bigger update that will roll out above the up coming couple of races and staff boss Mattia Binotto was keen to decouple the improve from the end result in Russia, expressing: “I never assume it is down to the upgrades. I imagine we’ve acquired a improved balance here on these keep track of characteristics.”

GP RUSSIA F1/2020 -  DOMENICA 27/09/2020

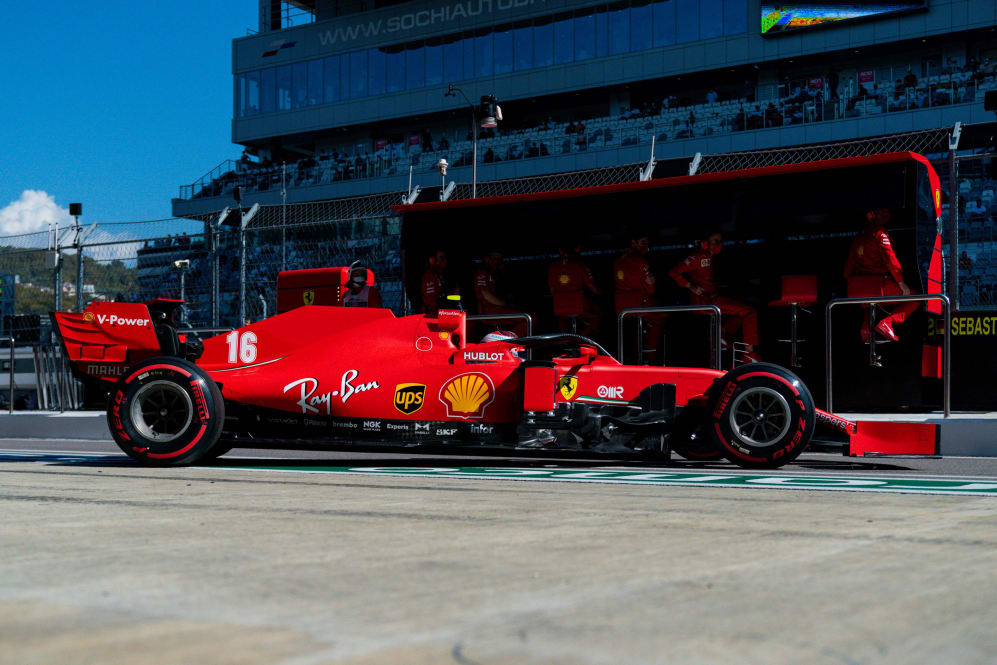

P6 in Russia represented Charles Leclerc’s best complete because the 70th Anniversary Grand Prix

In addition, the reality that Leclerc – like workforce mate Sebastian Vettel – failed to make it into Q3 also likely played in his favour at Sochi, in that the considerably more time-long lasting medium tyres he was equipped to pick out for the first stint permitted him a significantly superior strategy than the smooth-shod vehicles at the lower reaches of the Q3 element of the grid.

This was vital in letting him to conquer the faster-qualifying Esteban Ocon and Pierre Gasly (helped by the extensive-running Vettel delaying the Renault right after its prevent).

Read through Far more: Leclerc claims Ferrari have taken ‘good phase forward’ just after best outcome in five races

However, the upgrades ended up felt to have been positive in that they behaved as experienced been recommended in simulation and can thus be expected to contribute to the enhancement the total enhance deal will with any luck , deliver when it is last but not least introduced.

At Sochi these adjustments consisted of a new rear-wing endplate (down below) and a tweak to the aerodynamic cape beneath the nose.

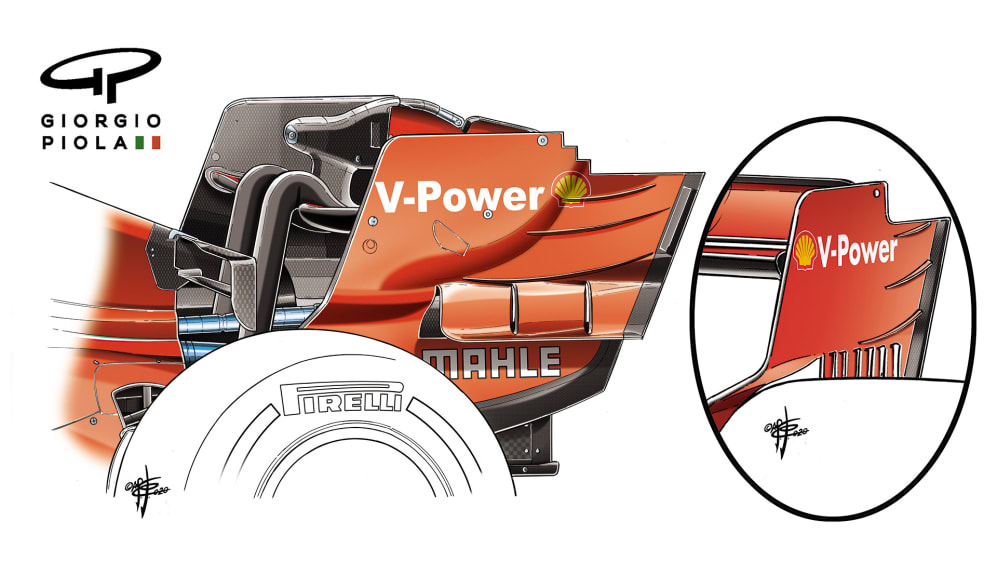

Ferrari brought new rear-wing endplates to Russia. Encircled is the old rear-wing endplate that experienced six slots.

The new rear-wing endplate, above, featured a stepped changeover from its taller forward area to the shallower segment aft of the most important plane. In its nether regions the array of six narrow slots had been replaced by a few a great deal extra distinctive and highly effective-on the lookout slots that a lot more closely resemble those on the Mercedes. These slots interact with the airflow exiting from the diffuser below it.

Study More: ‘I definitely struggled’ – Bad 1st lap to blame for disappointing Russian GP, claims Vettel

The new diffuser is not but on the vehicle, but is predicted to be seen at the following round at Germany’s Nurburgring.

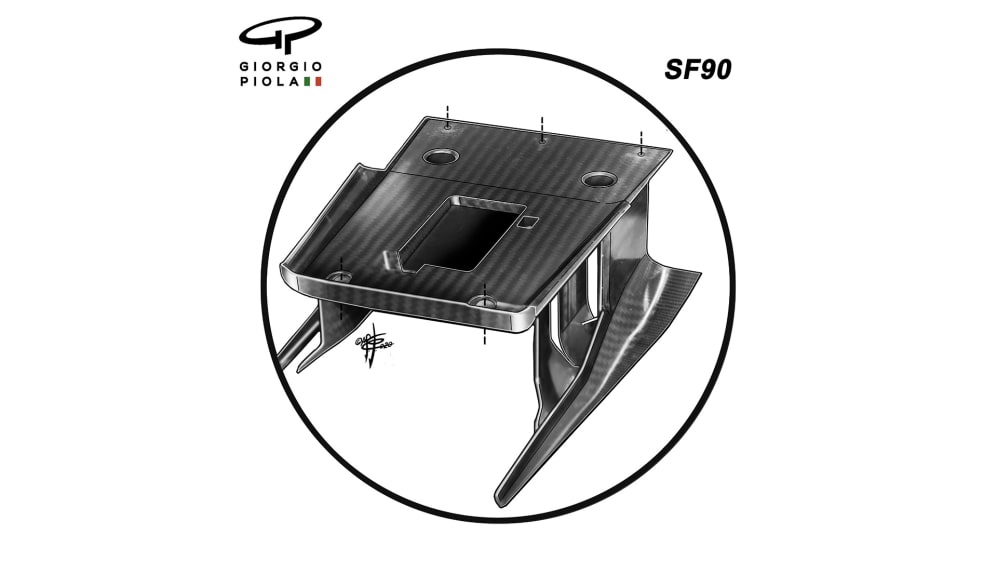

Up front, there was a compact transform to the profiling of the less than-nose cape. The cape, as can be witnessed in the drawing under, is a straightforward ingredient to get rid of and re-connect, enabling the regular one (under) to be back again-to-backed with a revised a person that featured a thinner leading edge.

The under-nose cape has a new design and style, but the aged layout (above) can be switched in conveniently, allowing for for back again-to-back tests.

The result of this within the common nose was to open up up a taller section within just the ‘nostrils’ (as indicated by the yellow traces, under) for the airflow travelling by the underfloor and bargeboard space.

There is usually a trade-off between the airflow’s volume and its pace in attempting to maximise downforce.

This adjust will almost certainly have elevated the quantity but lowered the velocity. There were being accompanying variations to the bargeboard spot with a advanced array of miniature mini-vanes, relatively like those people introduced last calendar year on the Haas.

Examine Additional: Mercedes suspect rival teams may have alerted FIA to Hamilton practice begin breach

Ferrari’s new nose has taller ‘nostrils’ that could improve quantity of airflow via the underfloor and bargeboard space.

All of these changes will link up with the extra parts of the package to be observed in the following couple of months. The overarching aim is to enhance the efficiency of the underfloor, aiding to create far more downforce. In this way the car’s too much drag can be decreased by a reduction in wing region/angle for the exact general downforce.

There is usually an ideal drag/downforce trade-off for a offered level of motor electrical power – and Ferrari’s has been much too draggy for its electric power all year. These latest modifications request to reduce that.
